Radiation protection

When contractor Leonhard Weiss from Satteldorf was awarded the contract for a new building at Darmstadt Klinikum, the requirements of the newradiology rooms were a major aspect of the project specifications. This construction phase not only required 8,000 m³ of standard concrete but also – among other things – 300 m³ of heavy concrete with a specified density of 4.2 t/m³ (standard concrete usually has a weight of 2.3 t/m³). The walls had to be 1.70 m and the ceilings 1.80 m thick. Lead plates with a total weight of 25 metric tons also had to be embedded in the ceilings – so all in all a taxing task for both the construction company and the ready-mix concrete manufacturer.
The heavy concrete challenge

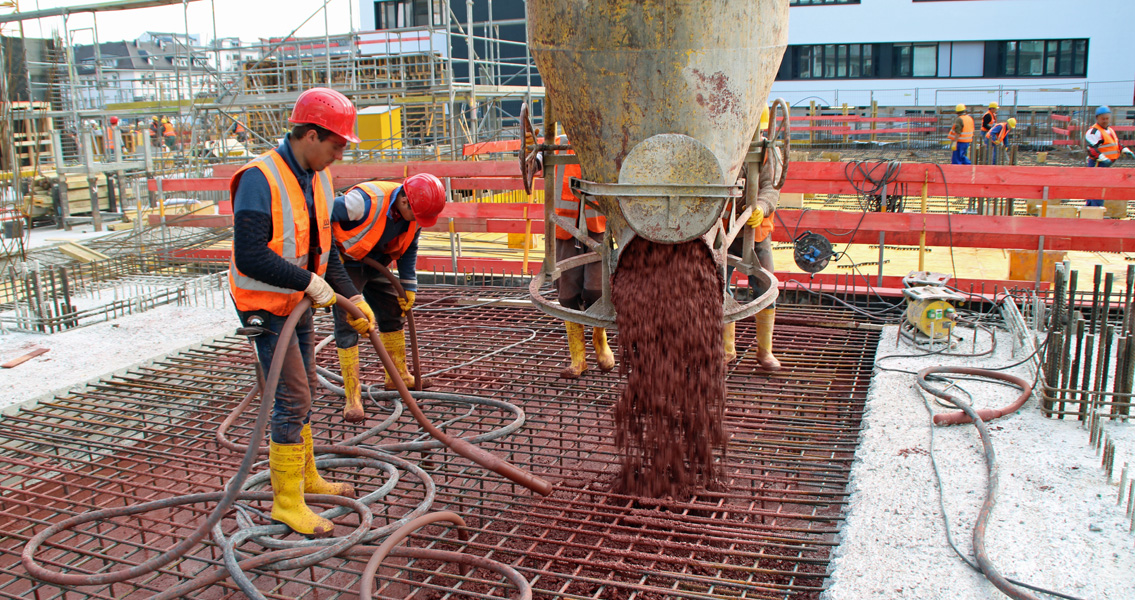

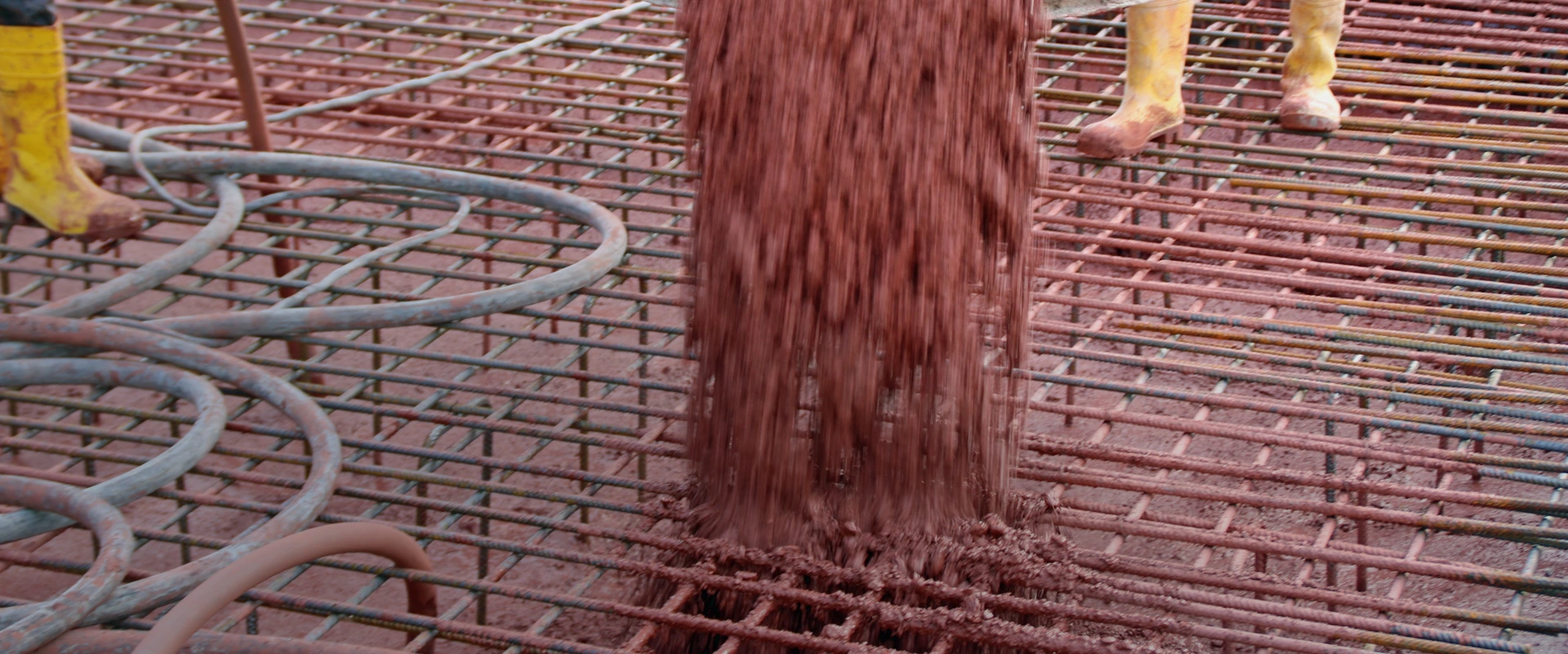

Heavy concrete is made by adding dense aggregates such as magnetite, haematite or barite. Their ironcontaining components give the concrete a red colour. Because heavy concrete mixtures are very seldom used in Germany, the production facilities and machines are rarely designed for the enormous weights involved. Moreover, the concrete flow rate is significantly slower.
Consequently, it was necessary to reinforce all relevant technical facilities in advance and to develop an appropriate concrete formulation that guaranteed both uniform quality and a sufficiently wide application window. It also had to allow for the difficult transport conditions prevailing in Germany’s Rhine-Main region around Frankfurt. Thus there were major technical and logistical challenges for the ready-mix concrete provider to tackle.
