Hidden Threat: Rear Moisture Penetration

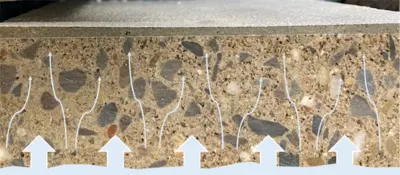

Rear moisture penetration refers to the infiltration of moisture into the rear (back) surfaces of structures, often resulting in degradation, corrosion, or structural damage. This phenomenon poses a significant challenge in various environments, particularly in regions characterized by high humidity, rainfall, or proximity to water bodies.

Several factors contribute to rear moisture penetration:

1. Environmental Conditions: Regions with high humidity or frequent rainfall create conducive environments for moisture infiltration into building structures.

2. Drainage Issues: Poorly designed or maintained drainage systems can lead to water pooling against rear surfaces, facilitating moisture penetration.

3. Structural Defects: Gaps, cracks, or openings in building exteriors provide pathways for moisture to seep into the rear surfaces.

The consequences of rear moisture penetration can be severe and include:

- Structural Degradation: Moisture ingress compromises the integrity of building materials, leading to deterioration, rotting, or weakening of structural elements.

- Mold and Mildew Growth: Moist conditions foster the growth of mold and mildew on interior surfaces, posing health risks and requiring costly remediation efforts.

Preventing rear moisture penetration requires effective surface protection strategies:

1. Waterproofing Membranes: Installing waterproof membranes on exterior walls creates a barrier against moisture ingress, safeguarding rear surfaces from water infiltration.

2. Sealants and Caulks: Applying sealants and caulks to joints, seams, and cracks helps seal potential entry points for moisture, enhancing the integrity of rear surfaces.

3. Proper Drainage Systems: Implementing adequate drainage systems, including gutters, downspouts, and grading, directs water away from building foundations and rear surfaces, reducing the risk of moisture penetration.

Nafufill EC 6 and Nafufill R3 FM, high-performance fine fillers, offer exceptional impermeability due to their unique composition. These fillers have undergone rigorous testing against rear moisture penetration in a system comprising two coatings.

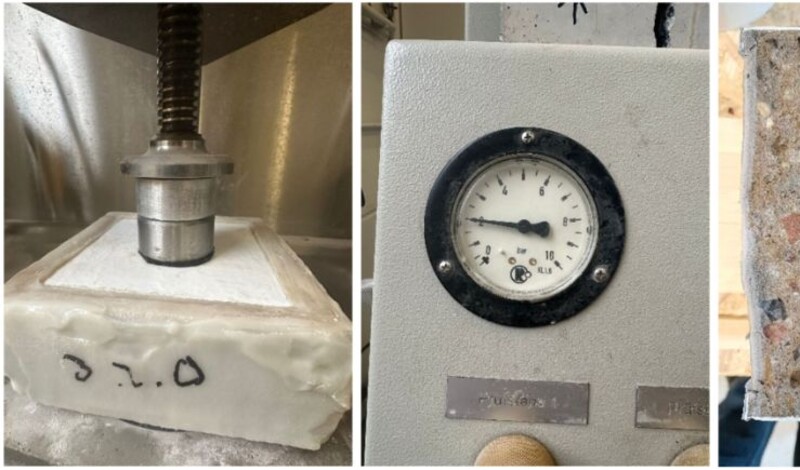

In the absence of regulatory requirements, specialized test conditions were established according to the guidelines outlined in the WTA leaflets 4-6. These conditions simulated an extremely unfavorable and rarely encountered scenario, ensuring a thorough evaluation of the systems' efficacy. The tested systems were applied to 5 cm thick, permeable concrete substrates and subjected to increased water pressure of 2 bar for 4 weeks (for the system with Nafufill EC 6) and 8 weeks (for the system with Nafufill R3 FM).

This testing methodology enabled a comprehensive assessment of the performance of Nafufill EC 6 and Nafufill R3 FM in resisting rear moisture penetration. The results contribute valuable insights into the effectiveness of these innovative solutions in providing both moisture barrier and surface protection functionalities, thereby addressing the challenges associated with rear moisture penetration in concrete structures.

Rear moisture penetration poses a significant threat to building structures, necessitating robust surface protection measures to prevent structural damage and mold growth. By addressing the causes and implementing effective solutions, the integrity of buildings can be preserved, ensuring long-term durability and safety.
