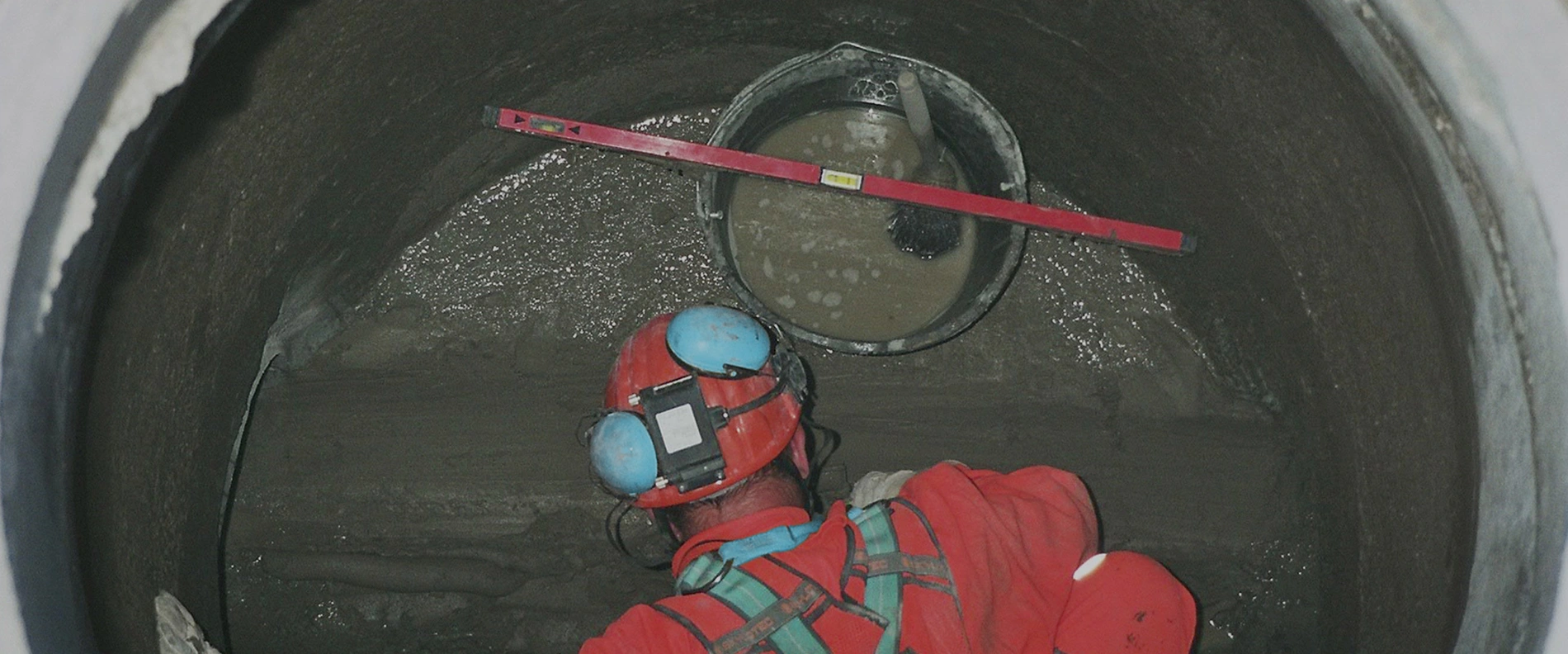

Rehabilitation of manholes and accessible sewerage structures

Rehabilitation of manholes and accessible sewer structures

From waterproofing and concrete rehabilitation to surface protection – with our mineral and reaction-resin-based systems we provide you with the right solution for every application related to the rehabilitation of manholes and accessible sewer structures.

There are products

Products to compare

	Konudur Remover 2.1	ombran L 450 flex	ombran SC	ombran SC Cat L	ombran L 450	Konudur Flexfit CS	Konudur Flexfit	Injection systems	MC-DUR 1177 WV-A - for underground sewer systems	ombran FG rapid	ombran FG plus	ombran IW	ombran W	ombran flex	ombran FT	ombran CPS	MRT - Truck	Nafufill KMH - for underground sewer systems	ombran ASP	ombran R	ombran HB	ombran MHP rapid	ombran MHP 15	ombran MHP	ombran MHP-SP	ombran MHP-SP 3000
Description:	Easily and quickly biodegradable decoater for dust-free removal of old coatings	Stitched E-CR glass fibre mat for renovation with hand lay-up laminate in combination with the organic-mineral resin ombran SC	Organomineral resin for the rehabilitation hand lay-up laminate	Accelerator for the organomineral resin ombran SC	E-CR glass fibre mat for renovation with hand lay up laminate in combination with the organomineral resin ombran SC	Reaction resin based filler for flexible embedding of CIPP-liners to manhole walls	Reaction resin based filler for flexible embedding of CIPP-liners to manhole walls	Injection materials and processing equipment for sealing of in- and exfiltrations in accessible waste water systems	Transparent epoxy resin - primer for ombran flex	Fast-setting grout for levelling of manhole frames at low temperatures	Fast-setting grout for levelling of manhole frames at medium temperatures	Superfast-curing mortar for surface-sealing of laminar infiltration	Rapid-curing, expanding plugging mortar to stop water infiltration	Permanent flexible coating for manhole tapers	Hybrid-silicate coating for fat and light liquid separators	Hybrid-silicate coating system protecting against biogenic sulphuric acid corrosion	Truck with integrated automated manhole rehabilitation technology (MRT)	Mineral corrosion protection coating (formerly ZENTRIFIX KMH)	Cement-bound rigid sealing slurry	Rapid setting mortar for partial repair of concrete parts	Bonding agent for mineral substrates	Very fast setting mortar for reprofiling and coating - application by hand on channel areas	Fast setting mortar for reprofiling and coating - application by hand on wall and channel areas	Mortar for reprofiling and coating - application by hand on wall and ceiling areas	Mortar for reprofiling and coating - machine processing by wet spraying or spinning technology (MRT)	Mortar for reprofiling and coating - machine processing by wet spraying or spinning technology (MRT)
Properties:	Stable, machine-processable remover CHC-free Effective against EP, PU, PVC, acrylate, styrene acrylate Good processing properties, ready for use Very good biodegradability pH-neutral Low odor One-component	Good impregnation Good handling Easy to tear and cut Fully corrosion-resistant stitched glass fibre tangled mesh	Low viscosity, two-component organomineral resin Styrene free and odourless Highly water vapour diffusible Quickly reworkable for continuous work Fast curing times even at low temperatures Flexible adjustment of reaction time and viscosity Good adhesion to mortar, concrete, brick and ceramic Can be used on dry and matt damp mineral substratesbar	Acceleration of the reaction of ombran SC at low temperatures Increasing the viscosity of ombran SC	Good impregnation behaviour Good handling Easy to tear and cut Fully corrosion-resistant glass fibre tangled mesh with powder compund	High-reactive filler, self-stable material properties, suitable for vertical and overhead application Permanently flexible and resistant to domestic waster water acc. to DIN 1986-3 Highly chemical and mechanical resistance Good adhesion to dry and damp mineral based substrates Good adhesion to GRP substrates General building supervision approval Z-42.3-578	High-reactive filler, self-stable material properties, suitable for vertical and overhead application Permanently flexible and resistant to domestic waster water acc. to DIN 1986-3 Highly chemical and mechanical resistance Good adhesion to dry and damp mineral based substrates Good adhesion to GRP substrates General building supervision approval Z-42.3-578	Depending on the intensity of the infiltration or exfiltration, various methods are available to eliminate leakages Basicly there is a distinction in the sealing by injection between the application of reaction resins and cement suspensions In the case of reaction resins are two groups of materials which has to be distinguished: hydrostructural resins and polyurethane resins The different injection materials require customized processing equipment such as 1K- and 2K- pumps, diaphragm pump and 2K- hand-held dispenser	MC-DUR 1177 WV-A is used as primer for ombran flex (permanent flexible coating for manhole tapers in waste water areas) in case of application to moist or non-mineral substrates, by application as joint sealant as well as in case of chemical, thermic exposure or / and exposure to UV-light.	Cement-bound, one-component Very high flowability High initial and final strength Low shrinkage, slightly swelling Very high resistance to freeze and de-icing salt tested in accordance with CDF test method (BAW-leaflet), resistant to sulphate attack Very good adhesion to mineral substrates Fulfills requirements according to DIN 19573 (WW-shaft head mortar) as well as DAfStb-grout guideline	Cement-bound, one-component Very high flowability High initial and final strength Low shrinkage, slightly swelling Resistant to sulphate attack Very high resistance to freeze and de-icing salt tested in accordance with CDF test method (BAW-leaflet) Very good adhesion to mineral substrates Fulfills requirements according to DIN 19573 (WW-shaft head mortar) as well as DAfStb-grout guideline	Cement-bound, one-component Expanding during curing process when exposed to water (swelling effect) Does not contain any substances that promote corrosion Very good adhesion on mineral substrates	WW-repair mortar (B1-XWW3) acc. to DIN 19573 WW-jointing mortar (XWW3) acc. to DIN 19573 Cement-bound, one-component Expanding during curing process when exposed to water (swelling effect) Dos not contain any substances thta promote corrosion Volume stability in accordacne with DIN 1164	Two-component, polyurethane resin filler Permanent flexible, crack bridging Watertight, osmose consistent Good resistance against acid and alkaline solutions, resistant against biogenic sulphruic acid corrosion Processible with trowel and leveler and therewith usable in vertical and overhead areas Usage on dry mineral based substrate without primer possible Good adhesion to non-mineral substrates, brick, pottery, metall and ombran FT/CPS Adhesions to CIPP-liner possible	Hand and spray applicable coating system Highly resistant to chemcials Good adhesion to concrete, mineral based mortars, steel and stainless steel fittings Electrostatic conductive Resistant to heating oils, petrol and diesel, biodiesel, aviation fuel, internal combustion engine oils and vehicle gearbox oils Test certificates in acc. with EN 1825-1 and EN 858-1 German general building supervision approval for retention basins made of concrete in LAU-structures	Hand and spray applicable coating system High mechanical and chemical resistant when cured Highly water vapour permeable Resistant to biogenic sulphuric acid corrosion Good adhesion on mineral substrates (e.g. concrete) General building supervision approval		Nafufill KMH will be used as corrosion protection for reinforced steel in the course of concrete repair in underground sewer systems	Cement-bounded, one-component, tricalciumaluminate-free bonding agent (C₃A-free) Impermeable to water, frost-resistant Allows diffusion of water vapour Resistant to very severe sulphate attacks Good adhesion on mineral and cement-bound substrates Hand and spray application	WW-repair mortar (B1 - XWW3) acc. to DIN 19573: 2016-3 Cement-bounded, one-component Rapid strenght development Does not contain any corrosion-promoting substances Volumetrically stable according to DIN 1164 Able to water vapour diffusion High mechanical resistance Early resistance to water impact	Cement-bounded, one-component, tricalciumaluminate-free bonding agent (C3A-free) General building supervision approval Allows diffusion of water vapour Bonding agent for mineral substrates	Cement-bounded, polymer-modified, one-component, tricalcium aluminate-free binding agent (C3A-free) Impermeable to water, resistant to freeze and de-icing salt attacks Can withstand heavy mechanical loads, highly abrasion resistant Resistant to very severe sulphate attacks Early resistance to water compact Suitable as coating system in public sewerage systems, durable down to pH ≥ 3.5: resistant to impacts concrete is exposed in exposition class XA3 according to EN 206 WW-coating mortar (B1-XWW3) acc. to DIN 19573 Class R3 according to EN 1504-3 (structutal relevant)	Cement-bounded, polymer-modified, one-component, tricalcium aluminate-free binding agent (C3A-free) Impermeable to water, resistant to freeze and de-icing salt attacks Can withstand heavy mechanical loads, highly abrasion resistant Resistant to very severe sulphate attacks Early resistance to water compact Suitable as coating system in public sewerage systems, durable down to pH ≥ 3.5: resistant to impacts concrete is exposed in exposition class XA3 according to EN 206 WW-coating mortar (B1-XWW3) acc. to DIN 19573 Class R3 according to EN 1504-3 (structutal relevant ) General building supervision approval	Cement-bounded, polymer-modified, one-component, tricalcium aluminate-free binding agent (C3A-free) Impermeable to water, resistant to freeze and de-icing salt attacks as well as strong temperature changes Can withstand heavy mechanical loads Resistant to very severe sulphate attacks Rapidly capable of being exposed to water Suitable as coating system in public sewerage systems, durable down to pH ≥ 3.5: resistant to impacts concrete is exposed in exposition class XA3 according to EN 206 WW-coating mortar (B1-XWW3) acc. to DIN 19573 Class R3 according to EN 1504-3 (structutal relevant) General building supervision approval	Cement-bounded, polymer-modified, one-component Spray and spinning application (also partial hand application with bond coat ombran HB) Impermeable to water Resistant to freeze and de-icing salt attacks Can withstand heavy mechanical loads Suitable as coating system in public sewerage systems, durable down to pH ≥ 3.5: resistant to impacts concrete is exposed in exposition class XA3 according to EN 206 WW-coating mortar (B1-XWW3) acc. to DIN 19573 Class R3 according to EN 1504-3 (structutal relevant ) General building supervision approval	Cement-bounded, polymer-modified, one-component Spray and spinning application (also partial hand application with bond coat ombran HB) Impermeable to water Can withstand heavy mechanical loads Highly abrasion resistant (Darmstädter Kipprinne) Resistant to severe sulphate attack Early resistant to water impact Resistant to freeze and de-icing salt attacks as well as strong temperature changes Suitable as coating system in public sewerage systems, durable down to pH ≥ 3.5 Exposition class XWW4 according to DIN 19573 (WW-mortar for coating); resistant to impacts concrete is exposed to in exposition class XA3 according to EN 206 Class R4 according to EN 1504-3 Class B2 according to DIN 19573 (WW-mortar for coating)
Applications:	Removal of surface coatings in power plant construction Removal of surface coatings without dust and noise generation Removal of carpet adhesive residues	E-CR Glass fibre tangled fabric for renovation with hand lay up laminate Lining systems for accessible structures of the sewerage system Liner connection in sewer manholes Lining of manhole channels or lower parts Supplement to GFRP elements and panels	Impregnation and fulling of powder-bound E-CR glass fibre mats for renovation with hand lay up laminate Lining procedures for accessible structures of the sewerage system Liner connection in sewer manholes Lining of manhole channels or lower parts Supplement to GRFP elements and panels	Impregnation and fulling of powder-bound E-CR glass fibre mats for renovation with hand lay up laminate Lining procedures for accessible structures of the sewerage system Liner connection in sewer manholes Lining of manhole channels or lower parts Supplement to GRFP elements and panels	E-CR Glass fibre tangled fabric for renovation with hand lay up laminate Lining systems for accessible structures of the sewerage system Liner connection in sewer manholes Lining of manhole channels or lower parts Supplement to GFRP elements and panels	Embedding of CIPP-liner to manhole walls Embedding of laterals in manholes and accesible sewage constructions	Embedding of CIPP-liner to manhole walls Embedding of laterals in manholes and accesible sewage constructions	Classic Injection (epoxy-, polyurethane- and hydrostructural resins as well as cement suspensions) Injection by cartridge systems (MC-Fastpack systems) Equipment & tools (pumps and packer)	Priming of surfaces in waste water systems by using ombran flex	Grout for manhole frame leveling (cylindrical and conical shape) Void-free grouting of joints between manhole frame and taper Height adjustment/leveling of gully holes or other component frameworks Annulus backfilling at shaft-in-shaft systems REACH-assessed exposure scenarios: application, periodical water-contact	Grout for manhole frame leveling (cylindrical and conical shape) Void-free grouting of joints between manhole frame and taper Height adjustment/leveling of gully holes or other component frameworks Annulus backfilling at shaft-in-shaft systems REACH-assessed exposure scenarios: application, periodical water-contact	Rapid and permanent sealing of large scale leakage and water inleakage Suitable on concrete and masonry REACH-assessed exposure scenarios: periodical inhalation, application, long term water contact	Rapid and permanent stopping of leaks and water intrusions in structures of concrete, masonry and natural stone Sealing pipe penetrations and pipe connections Retro-Sealing of damaged pipe couplings and manhole ring joints Sealing of internal corners of components and transitions between components REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact	Rehabilitation of tapers in case of dynamic loads Coating of shaft rings and taper areas of manholes Sealing material for manhole frame joints Integration/annular gap sealing of tube entrances and pipe penetrations in accessible structures Permanent elastic sealing of cracks, clefts and joint sections in accessible sewage systems	Coating systems for separator installations for grease Coating systems for separator installations for light liquids Coating system according to German WHG § 62 / 63 REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact	Sewage manholes exposed to biogenic sulphuric acid corrosion Pumping sumps and reservoirs in domestic wastewater systems exposed to biogenic sulphuric acid corrosion Application not suitable for weather exposed surfaces REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact		Active corrosion protection for reinforced steel in the course of concrete repair	Sealing of ground-connected construction parts, e.g. concrete and masonry sewers, tanks Sealing against capillary water, rising damp and pressurised surface water REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact	Partial repair and reprofiling of damaged structures made of concrete or masonry Closing of manhole ring gaps Repair of voids and blowouts at concrete pipes Forming of grooves REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact	Bonding agent for cement-based mortars from the ombran product range and for the renovation of sewerage systems REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact	Re-profiling of excavations and defects in manholes, sewers as well as reservoirs Small-area coating of concrete and masonry manholes, sewers and reservoirs Reprofiling and coating of channel areas in sewerage systems and manholes Forming of fillets REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact	Coating of concrete and masonry manholes, sewers as well as reservoirs Re-profiling of breakouts and defects in manholes, sewers as well as reservoirs Surface levelling in masonry manholes Forming of fillets REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact	Coating of concrete and masonry manholes, sewers as well as reservoirs Re-profiling of breakouts and defects in manholes, sewers as well as reservoirs Surface levelling in masonry manholes Forming of fillets REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact	Coating of concrete and masonry manholes, sewers as well as reservoirs Re-profiling of breakouts and defects in manholes, sewers as well as reservoirs Application by wet-spray and spinning technology REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact Suitable concerning impacts concrete is exposed to in exposition class XA3, XS3 and XD3 acc. to EN 1504-3	Coating of concrete and masonry manholes, sewers as well as reservoirs Re-profiling of breakouts and defects in manholes, sewers as well as reservoirs REACH-assessed exposure scenarios: periodical inhalation, application, long-term water contact
Downloads:

Talk to a specialist ...

Filter products by:

Properties

Applications

Konudur Remover 2.1

Easily and quickly biodegradable decoater for dust-free removal of old coatings

ombran L 450 flex

Stitched E-CR glass fibre mat for renovation with hand lay-up laminate in combination with the organic-mineral resin ombran SC

ombran SC

Organomineral resin for the rehabilitation hand lay-up laminate

ombran SC Cat L

Accelerator for the organomineral resin ombran SC

ombran L 450

E-CR glass fibre mat for renovation with hand lay up laminate in combination with the organomineral resin ombran SC

Konudur Flexfit CS

Reaction resin based filler for flexible embedding of CIPP-liners to manhole walls

Konudur Flexfit

Reaction resin based filler for flexible embedding of CIPP-liners to manhole walls

Injection systems

Injection materials and processing equipment for sealing of in- and exfiltrations in accessible waste water systems

MC-DUR 1177 WV-A - for underground sewer systems

Transparent epoxy resin - primer for ombran flex

ombran FG rapid

Fast-setting grout for levelling of manhole frames at low temperatures

ombran FG plus

Fast-setting grout for levelling of manhole frames at medium temperatures

ombran IW

Superfast-curing mortar for surface-sealing of laminar infiltration

ombran W

Rapid-curing, expanding plugging mortar to stop water infiltration

ombran flex

Permanent flexible coating for manhole tapers

ombran FT

Hybrid-silicate coating for fat and light liquid separators

ombran CPS

Hybrid-silicate coating system protecting against biogenic sulphuric acid corrosion

MRT - Truck

Truck with integrated automated manhole rehabilitation technology (MRT)

Nafufill KMH - for underground sewer systems

Mineral corrosion protection coating (formerly ZENTRIFIX KMH)

ombran ASP

Cement-bound rigid sealing slurry

ombran R

Rapid setting mortar for partial repair of concrete parts

ombran HB

Bonding agent for mineral substrates

ombran MHP rapid

Very fast setting mortar for reprofiling and coating - application by hand on channel areas

ombran MHP 15

Fast setting mortar for reprofiling and coating - application by hand on wall and channel areas

ombran MHP

Mortar for reprofiling and coating - application by hand on wall and ceiling areas

ombran MHP-SP

Mortar for reprofiling and coating - machine processing by wet spraying or spinning technology (MRT)

ombran MHP-SP 3000

Mortar for reprofiling and coating - machine processing by wet spraying or spinning technology (MRT)
